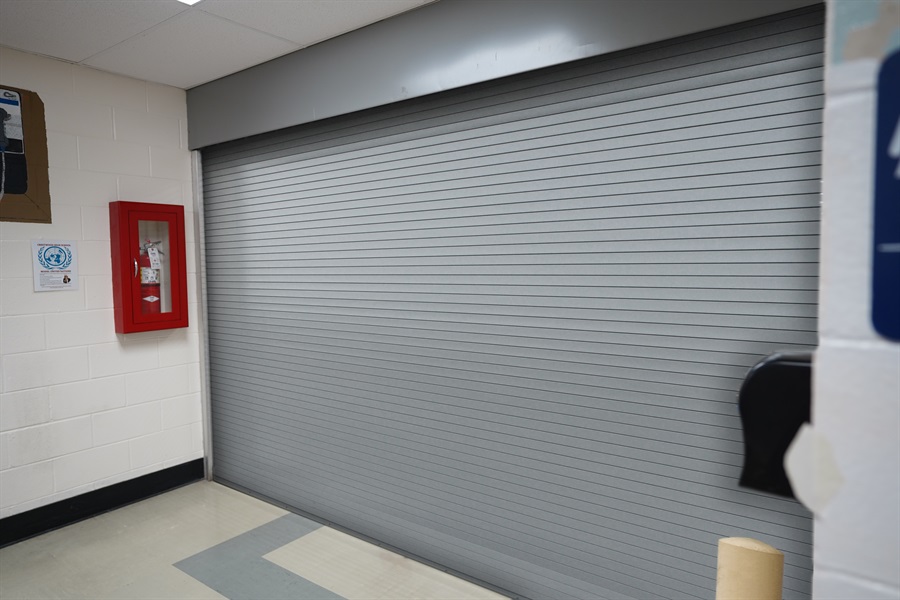

CrossingGard® Door with ThreatProtect™

Service Doors

Model Number: ERD-TP

SMART EMERGENCY RESPONSE EGRESS DOOR

Take your building’s security to the next level with the CrossingGard® Door with ThreatProtect™. Intelligent technology pairs with your existing alarm system to respond quickly in emergencies. During lockdown events and procedures, the door closes to secure and zone your building. In other emergencies, the door opens to give evacuees a safe exit.

CrossingGard® Door with ThreatProtect™ comes standard with a UL-325-compliant safety edge, reliable battery backup, and a key override.

Overhead rolling doors are built tough for both interior and exterior applications. Solid steel slats create a strong physical and visual barrier to prevent unwanted entry. Also available in a grille, insulated version or with a perforated curtain to provide visibility for first responders. These doors are the solution for applications that need to create zoned areas, provide emergency egress pathways, and meet the need for daily public access control.

Ideal for schools, colleges and universities, medical facilities, and applications that need a safe and secure egress solution.

Security Today_2023@0.5x Astors Awards Gold 23

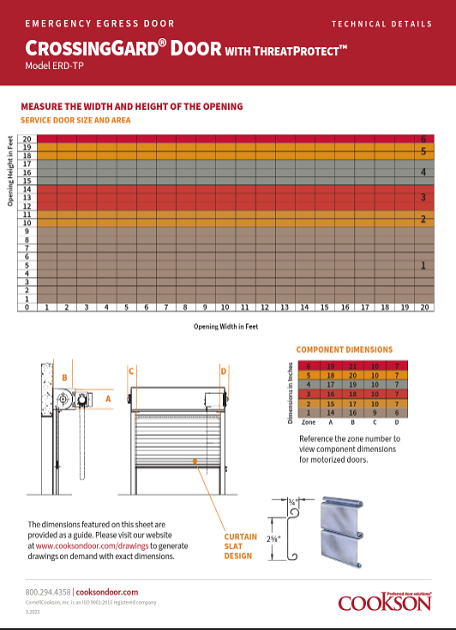

Technical Detail Information:
Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance

Sizes

Standard construction up to 20’ wide, 20’ high

For openings that fall outside of the standard construction, please contact us

Standard Materials & Finishes

The CrossingGard Door with ThreatProtect comes standard with a steel counter-balance shaft and structural steel guides with powder coating to match curtain

Curtains are Galvanized steel with GalvaNex polyester enamel finish in Gray, Tan, White or Brown.

The bottom bar comes standard heavy-duty extruded aluminum in mill finish.

Operation

The specialized ThreatProtect Operator features a battery backup that ensures the door will continue to operate in the event of a power outage.

This door also comes standard with a UL325 compliant sensing edge that prevents the door from closing on an object.

Safety & Protection

Sensing Edge - Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

Aesthetics

Omni Powder Coat Finish

Our environmentally friendly Omni Powder Coat helps you to match your rolling steel door to select Clopay sectional doors.

Omni Powder Coat is available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

Learn More

Hood Covers - CrossingGard Door

Galvanized steel with GalvaNex polyester enamel finish to match the curtain.

Materials & Finishes - CrossingGard Door

Aluminum in mill, clear or color anodized
Stainless steel 300 series in #4 finish
SpectraShield Powder Coating in more than 180 colors
For a more durable finish, upgrade to our GalvaNex Ultra or SpectraShield Ultra powder coat finish

Performance Upgrades

LED Visual Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Magic Switch

A touchless activation device designed to open and close doors with the wave of a hand. It's compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.

Learn more.

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall or Between Jambs to steel or masonry. Seismic performance validation is per ASCE 7-05.

Learn More

Technical Data Sheets

Specification Sheets

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
CrossingGard® Door with ThreatProtect™ Drawing Generator

Codes & Listings

ISO 9001:2008
Buy America Compliance
LEED® Compliance

See Codes and Listings page for detailed information.

Generate a CAD Drawing

CrossingGard Door with ThreatProtect Feature Sheet

CrossingGard Door with ThreatProtect Technical Details
