Exam Room Counter Door | Rolling Counter Door

Counter Door

Model Number: ESC15

The Exam Room Counter Door allows for the safe treatment of behavioral health patients in standard rooms saving healthcare providers money and resources while providing the needed security for patients.

When it comes to durability, the exam room shutter comes standard with a steel curtain for optimal strength. It has impact resistant guides and end locks that ensure the curtain will stay within guides, should there be impact.

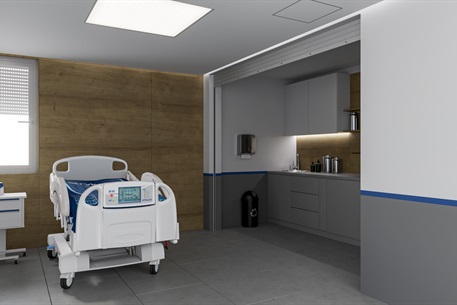

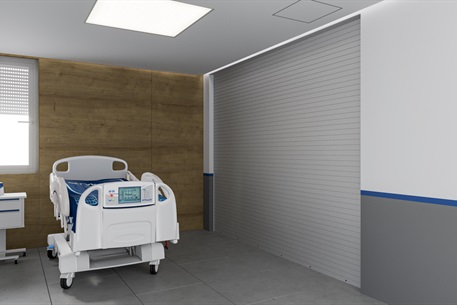

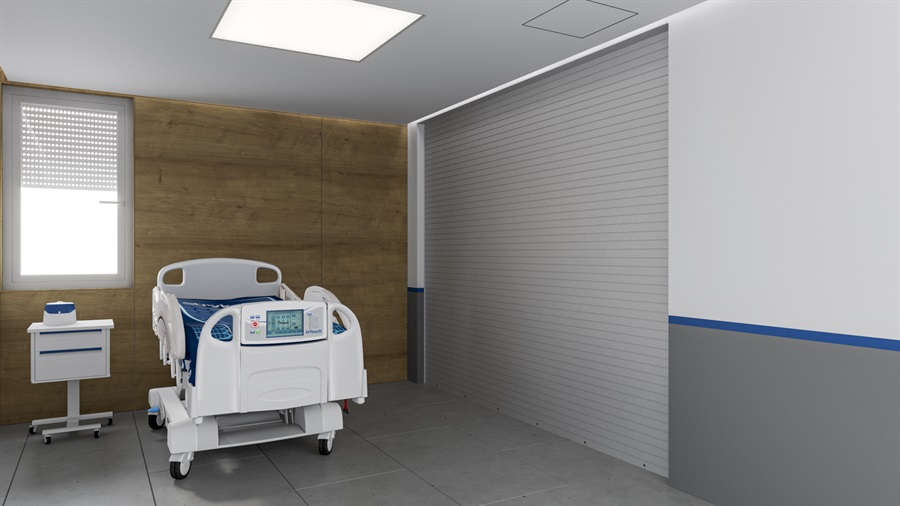

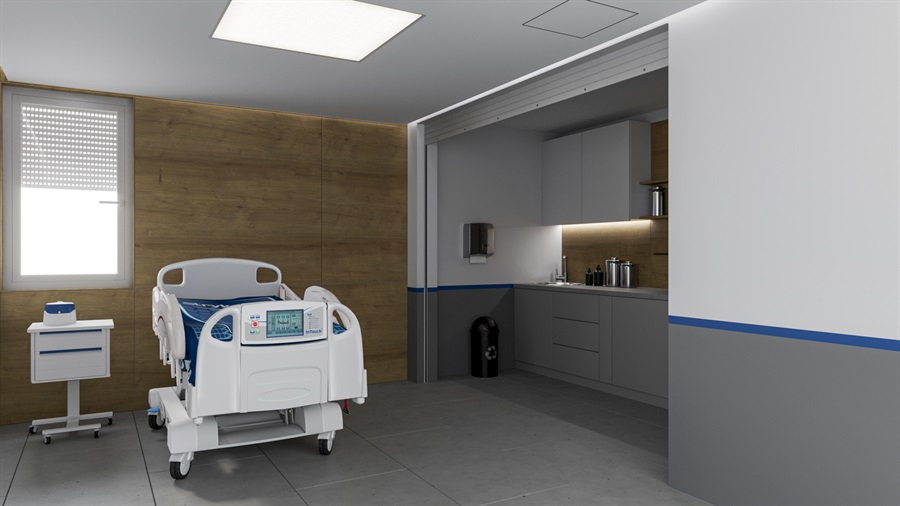

A completely flat surface facing the patient's room is created due to the fascia side motor sitting above the ceiling with the coil above the medical cabinet. When closed, the shutter completely covers sinks, cabinets, access to oxygen tanks and other potentially dangerous equipment. Fasteners are masked and the bottom bar is flat, eliminating all ligature points.

Exam Room Counter Door meets ASHRAE/Facility Guidelines Institute (FGI) recommendations for all exam room finishes to be impact, tamper and ligature resistant.

Technical Detail Information:
Exam Room Counter Door Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance

Usage

Our Exam Room Counter Doors are constructed for daily use.

Standard Materials & Finishes

Counter-Balance Shaft – Made of steel, supports curtain and contains torsion springs for assisting operation

Brackets – Steel with powder coating to match curtain

Tubes & Guides – Two piece steel guides attached to tubes that are recessed into drywall

Curtain - Interlocking roll-formed flat-faced slats made of Galvanized steel with GalvaNex™ polyester enamel finish in gray, tan or white.

End Locks - Riveted to the end of each slat, they are designed to ensure that the curtain is held within the guides in the event of impact.

Bottom Bar - Single angle flat bottom bar in steel with powder coating to match curtain creates a smooth transition.

Operations & Structural Requirements

Motor operation is required
Product is mounted to tubes that are recessed into the drywall along with the coil, eliminating ligature points.

Sensing Edge

Sensing Edge - Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

Aesthetics

Exam Room Counter Door Aesthetics

SpectraShield® Powder Coat Finish

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Learn More

Omni Powder Coat Finish

Our environmentally friendly Omni Powder Coat helps you to match your rolling steel door to select Clopay sectional doors.

Omni Powder Coat is available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

Learn More

Materials & Finishes

Exam Room Counter Door Materials & Finishes

16 gauge extruded aluminum in clear, color anodized and powder coat.
Stainless Steel - 300 series in #4 finish.
SpectraShield powder coating in more than 180 colors.
For a more durable finish, consider upgrading to our Galvanex™ Ultra™ or SpectraShieldR Ultra™ powder coat finish.

Technical Data Sheets

Exam Room Counter Door

Specification Sheets

Exam Room Counter Door

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
Exam Room Counter Door Drawing Generator

Codes & Listings

ISO 9001:2008
Buy America Compliance
LEED® Compliance

See Codes and Listings page for detailed information.

Generate a CAD Drawing

Exam Room Counter Door
