Insulated Rollup Counter Door | Cookson Door

Counter Door

Model Number: ESC30

Insulated Rollup Counter Door

Businesses with service windows or open counters are at risk of intrusion, vandalism, or theft when the staff leaves for the day. To protect your merchandise and equipment, invest in a durable counter door that blocks entry, obscures vision, and provides an insulating seal.

Introducing Cookson’s unique rollup Insulated Counter Door, which minimizes the space needed for installation and use as compared to a standard insulated door while maximizing aesthetics with a streamlined, sleek look. Our Insulated Counter Door is extremely compact with a patented PVC back slat to secure the insulated foam within the door’s curtain, making it the only one of its kind available in the market.

Cookson's insulated rolling counter door is well suited for indoor or outdoor use. With its many features and versatility, the Insulated Counter Door works for various businesses for after-hours security, including healthcare offices, hospitality areas, educational facilities, stadiums, and more.

The Insulated Counter Shutter can be configured to withstand a general windload of up to 25 psf.

Choose Cookson for Insulated Counter Shutters

When it comes to counter shutters, a precise fit matters. That's why we work with you to create an Insulated Counter Door that meets your specifications. Our customers can access the Architect Portal for design tools, operators manuals, industry links, and other useful resources. We also list product inspiration images and videos to help you make the most of your service door investment.

To outfit your interior or exterior commercial service window with a counter shutter you can trust, contact Cookson or find a dealer in your area.

Technical Detail Information:

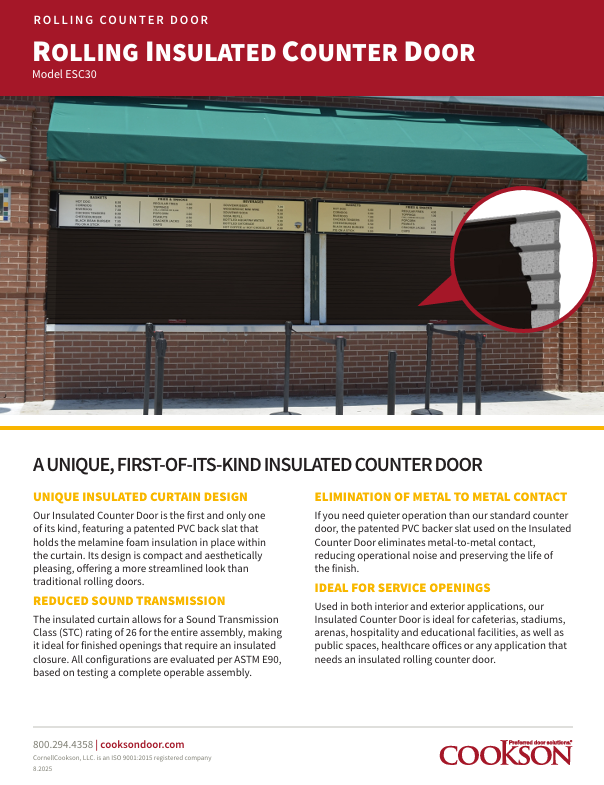

Insulated Counter Door Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance

Best Uses for Rollup Insulated Counter Doors

Health care offices: From pharmacy windows to reception offices, the Insulated Counter Door functions as a protective, easy-to-use shutter for medical practices.
Hospitality areas: Close the service window at your hotel, restaurant, or bar with a sleek and sturdy GalvaNex™ polyester curtain.
Educational facilities: Prevent off-hours access to school dining halls, bookstores, and more.
Cafeterias: Install counter shutters for each individual cafeteria station to prevent intrusion while keeping floor seating available.

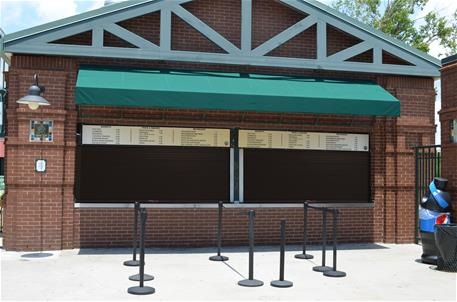

Stadiums: Seal your merchandise shops, ticket windows, or concession windows between events with a reliable counter door.
Auditoriums: Close ticket windows between shows or reduce the size of your auditorium space for ideal acoustics.

Benefits of Choosing the Cookson Rolling Counter Door

The Cookson rolling Insulated Counter Door is the ideal choice for businesses that need extra absorptive performance in addition to protection against intrusion. This product offers quiet operation while absorbing a substantial amount of sound.

Our Insulated Counter Door is extremely compact with a patented PVC back slat to secure the insulated foam within the door’s curtain, making it the only one of its kind available in the market with the added benefit of sound dampening. The assembly has a Sound Transmission Class (STC) rating of 26 – a quiet solution for finished openings that need insulation. These insulative properties can also lead to increased temperature control and energy efficiency for businesses that have climate-sensitive merchandise and are looking to reduce utility costs.

In addition to its insulative properties, the rolling Insulated Counter Door's customization options give it incredible versatility. This shutter is available in various finish colors to complement your building, and you can maximize your branding by ordering a counter shutter etched with your company's logo.

Usage

Our Insulated Rolling Counter Door are constructed for daily use.

Materials & Finishes

Comes standard in galvanized steel with Galvanex polyester enamel finish in gray, tan or white. Also available in clear anodized aluminum, stainless steel – 300 series in # 4 finish and with SpectraShield powder coating in more than 180 colors.

Operators

Available with hand-crank, push-up and a variety of motor operations.

Sensing Edge

Sensing Edge - Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

Aesthetics

Omni Powder Coat Finish

Our environmentally friendly Omni Powder Coat helps you to match your rolling steel door to select Clopay sectional doors.

Omni Powder Coat is available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

Learn More

AtmoShield™ Powder Coating

Textured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.

Learn More

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

SpectraShield™ Powder Coat Finish

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Learn More

Vinyl Graphics

Add durable, full-color images to your curtains and hoods. Great for school logos and turning unused door space into profitable sponsorship opportunities in stadiums, amusement parks and retail stores.

Learn More

Finishes Colors & Options

Finishes Colors and Options

Finishes Colors & Options Sheet
AtmoShield® Color Options
Powder Coat RAL Color Chart

Performance Upgrades

LED Visual Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Magic Switch

A touchless activation device designed to open and close doors with the wave of a hand. It's compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.

Learn more.

Insulated Counter Door Windload Options

Can be configured to withstand a general windload of 25 psf.

Safety & Protection

SafetyGard UL325 Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Learn More

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

SmartSync Wireless Safety Edge Kit

SmartSync™ Wireless Safety Edge Kit & Wireless Remote Control

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.

The Smartsync™ Wireless Remote allows wireless control of your door or grille. This heavy-duty remote comes equipped with an anti-shock design and is compatible with most motor-operated doors, grilles or counter doors.*
*Not compatible with NEMA 7/9 operators
Learn more.

Technical Data Sheets

Insulated Counter Door Technical Details

Specification Sheets

Insulated Counter Door Specification

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
Counter Door Drawing Generator
Counter Door with Integral Frame Drawing Generator
