Defender Series

Model Number: PSD10, PSD20

Riot Protection

In the newest addition to the Defender series, the StoreDefender™ Door provides better protection for retailers in uncertain times. StoreDefender™ consists of heavy-duty slats that protect against common tool and body force attacks from 3+ attackers. The door stays securely in the guides with continuous cast wind locks. The slats lock into the barrel and slide locks secure the rigid 6” Heavy Duty Bottom Bar in place.

Upgrade the StoreDefender™ Door to include the AlarmGard Operating Systems. AlarmGard allows the door to be connected to the building’s security system and can be programmed to close in the event of an alarm or power loss – keep employees and merchandise safe form theft or attack.

The StoreDefender™ is extremely versatile, making it the perfect fit for any storefront or back of house application. It is also available as a Thermiser Max insulated door when environmental separation is required and is available in all of our standard finishes and more than 180 powder coat colors.

StoreDefender Awards

Technical Detail Information:

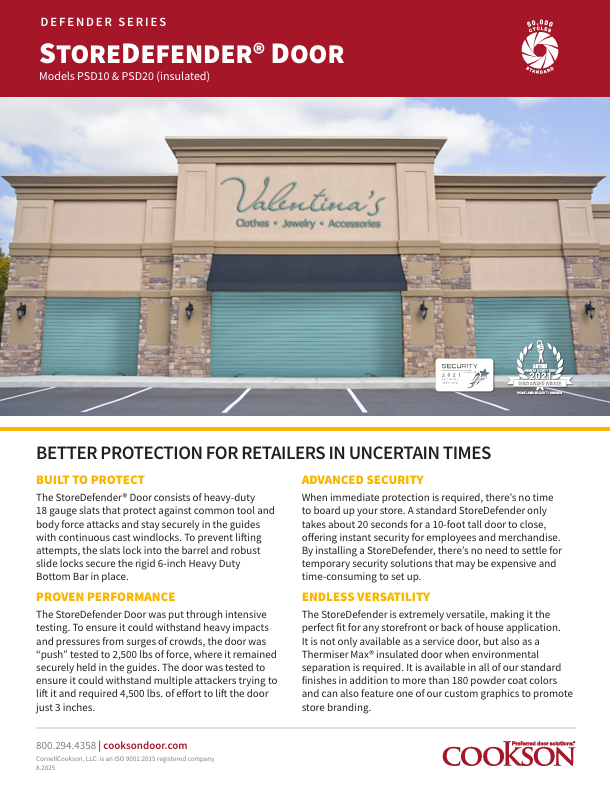

StoreDefender Brochure & Details Sheet Architectural Assistance

Resistance Rating

Tested* to more than 4500 lbs. of effort to lift 3’’
Tested* to more than 2500 lbs. for deflection (did not test to failure, bottom bar deflection of 3’’)
*The door used for testing was 14’1” x 10’

Sizes

This door is available in 2’4” x 3’ to 30’ x 40’.

Standard Materials & Finishes

Curtain - 18 gauge galvanized steel with GalvaNex™ polyester enamel finish in Gray, Tan, White or Brown.
Guides – Structural steel with powder coat to match the curtain.
Bottom bar - 6” tall made of aluminum in mill or powder coat finish.

Available Operators

The MG industrial duty operator is standard. The SG super duty operator is optional for applications requiring over 20 cycles per day.

Safety & Protection

Sensing Edge - Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

Aesthetics

AtmoShield™ Powder Coating

Textured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.

Learn More

SpectraShield™ Powder Coat Finish

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Learn More

LED Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Finishes Colors & Options

Finishes Colors and Options

Finishes Colors & Options Sheet
AtmoShield® Color Options
Powder Coat RAL Color Chart

Vibration Isolators

Vibration Isolator

Vibration Isolators effectively reduce the amount of vibration* caused by operation of doors and grilles.
*Vibration was reduced by14%+ on doors and grilles with vibration isolators installed compared to doors and grilles without the system
Learn More

SmartSync Wireless Safety Edge Kit

SmartSync™ Wireless Safety Edge Kit & Wireless Remote Control

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.

The Smartsync™ Wireless Remote allows wireless control of your door or grille. This heavy-duty remote comes equipped with an anti-shock design and is compatible with most motor-operated doors, grilles or counter doors.*
*Not compatible with NEMA 7/9 operators
Learn more.
