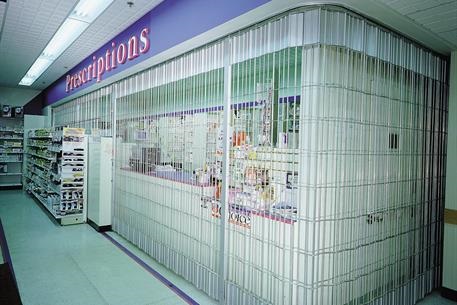

VisionGlide Side Folding Grille

Side Folding Grilles

Model Number: ESG30

Side Folding Gates

If you have an opening that needs a lightweight closure with not-so-lightweight security, the VisionGlide™ Side Folding Grille may be the solution you’re after. While VisionGlide is an effective traffic barrier, its light hang weight of 0.8 lbs per square foot means that you can install it on limited supporting structures. This product is excellent for floor to ceiling dividers in public spaces such as offices, hospitals and lobbies.

Side folding grilles require less headroom clearance than rolling grilles. The VisionGlide™ curtain is formed with a series of vertical 5/16" diameter aluminum rods on 3.5" centers. Horizontal chains formed of eyeletted aluminum links are spaced at 12" apart. Vertical hanger rods mounted to rollers that slide in the overhead track support the curtain.

Standard Features:

Clear anodized rods, links and post material
PVC tube spacers, polycarbonate hinged top and bottom panels to match
Fully anodized version optional
12" link spacing standard
9", 6" or 3" spacing optional
Hook bolt locking with cylinders both sides standard, other locking optional

Fully anodized version optional

Technical Detail Information:
VisionGlide Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance

Track Information

Extruded heavy-duty aluminum section 1 3/4" high by 1 5/16" wide track mounts to the overhead structure to support the entire unit. No floor track is required. Track required for curved openings has a standard 14" radius: 90°, 120°, 135° and 150° curves are standard.

Of note, custom radius angles are also offered, please contact us. Multiple connecting sections can be incorporated. Bi-Part opening is also available.

Sizes

Standard construction up to a maximum height of 12' 0”
Maximum recommended width of a single unit section is 30’0” – larger openings would require a multi-section curtain
Minimum width is 2’0”, minimum height is 4’0”
For openings that fall outside of the standard construction, please contact us

Usage

Constructed for manual push/pull operation with a daily use limit of up to 20 cycles per day.

Sensing Edge

Sensing Edge - Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

Grille Curtain Construction

VisionGlide Straight

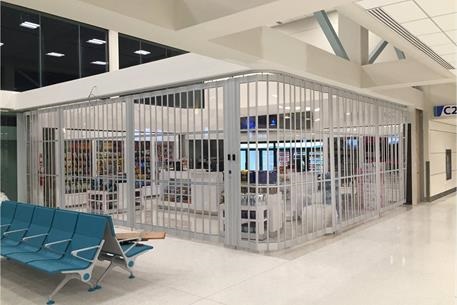

Straight Pattern

VisionGlide Brick

Brick Pattern

Unique Design Solutions

Curved Track Construction

For side folding doors and grilles, installing a curved overhead track can help avoid design obstacles in the ceiling space.

Learn More

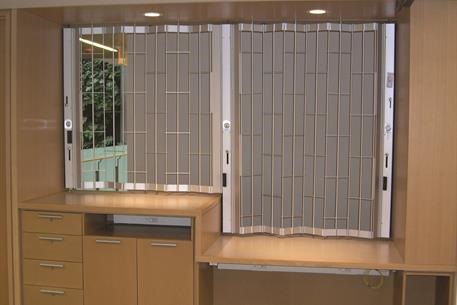

Grille Single Slide or Bi Parting Construction

This side folding grille can be designed to close at the center of the room in divided sections or extend fully from one wall to the other.

Learn More

Multiple Height Units

Available for openings that different heights in the same area.

Learn More

Pocket Door

Available for side closing products up to 12 feet high, this heavy duty 12 gauge steel pocket door and frame assembly neatly closes off the pocket area of a stored partition.

Learn More

Specification Sheets

VisionGlide Side Folding Grille Specification

Drawing Generator

Codes & Listings

ISO 9001:2008
Buy America Compliance
LEED® Compliance

See Codes and Listings page for detailed information.

Generate a CAD Drawing

Side Folding Grille Feature Sheet
