Extreme® 1024 High Performance Roll Up Door

Name: Extreme® 1024 High Performance Roll Up Door
Brand: Cookson Door

High Performance Doors

Model Number: EPD1024 and EPI1024

Fast Roll Up Doors

Our Extreme 1024 high performance high-speed roll doors offer intelligent operation and the highest door cycle life. You’ll have complete peace of mind as the 1024 series rapid roll doors have been tested to perform more than 1,000,000 open and close cycles of maintenance free performance. The easy to install overhead door maximizes commercial door up-time which improves productivity. Not just the longest lasting maintenance free overhead door, but it’s fast too. Our 1024 High Performance Roll Up Door’s rapid speed is three times faster than standard overhead doors with an opening speed of up to 24 inches per second. The rapid open and close cycles is combined with a steel door construction, improve security and prevent unwanted intrusions or entries at sensitive building openings.

The extreme 1024 high performance garage door is energy efficient too. It will quickly seal your building, reducing temperature loss and reducing energy costs. Our patented door perimeter seal system locks out air infiltration.

Operational up to 10 PSF maximum wind load.

Technical Detail Information:
Extreme 1024 Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance

Sizes

Standard construction up to 30' wide, 20' high
For openings that fall outside of the standard construction, please contact us

Standard Materials and Finishes

Extreme 1024 High Performance Doors come with a unique and lasting powder coat finish customized for high-cycle usage as standard. The door’s curtain material consists of:

18 or 22 gauge galvanized steel:
- Finished with a rust-inhibiting CycleShield™ finish in Gray, Tan or White
Stainless Steel Slats:
- Minimum 20 gauge AISI type 304 #4 finish stainless steel

The CycleShield finish for 1024 High Performance Doors. The base coat is consistent with ASTM A653, and is finished with a baked-on polyester powder coating. CycleShield is:
- Friction and wear-resistant for high-cycle applications
- Rust inhibiting and resistant to acids, alkalis and oils at normal temperatures
- Recommended for exterior, corrosive and/or abrasive environments
- Available as an option in a palette of more than 180 standard RAL colors

  Additional colors are available. Extended lead time may apply. Click here for additional material and finishes information.
For a more durable finish, upgrade to CycleShield® Ultra™ powder coat finish. It is a polyester-based, textured, wear-resistant clear coat that provides improved durability against deterioration and/or marring of the curtain during regular use.

Finish/gauge availability varies by product. Please contact us for detailed finish/gauge availability.

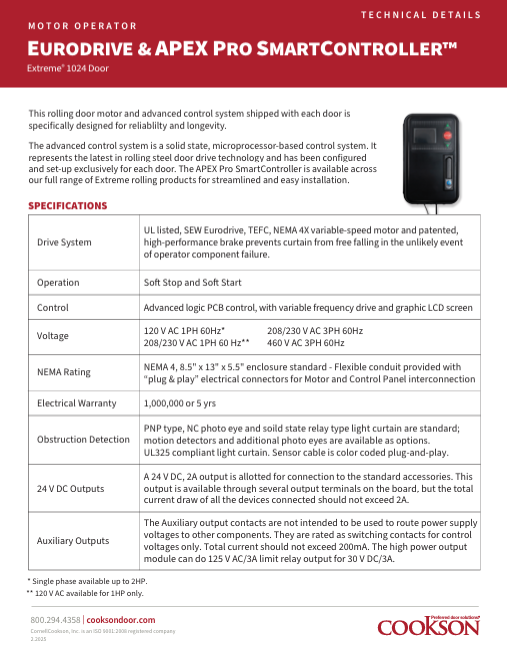

Drive and Control System

Motor: Our 1024 High Performance Door is powered by a UL listed, SEW Eurodrive TEFC NEMA4 variable speed motor with sprocket and chain drive horizontally mounted directly to the unitized structure. This operator also features a patent-pending high performance brake, which prevents the curtain from free-falling in the unlikely event of operator component failure
Control Panel: Our 1024 High Performance Door is controlled with a wall-mounted starter. This PLC controller features a variable frequency drive with a soft-start and soft-stop at both ends of limit travel. For harsh weather environments, the controller is NEMA 4 rated. Dimensions of the control panel are 20” x 24” x 8”

Videos

Testimonials

Check Out How We've Helped These Clients With Custom Closure Solutions:

"CornellCookson had installed a rolling door for us in our old building. We used it all the time and it’s held up really well over the years. Calling them in again made perfect sense. We are thrilled with how this door looks. The level of detail that’s been captured so clearly on this large door is incredible. It’s exceeded our expectations by far and will definitely do its job as a focal point in our new building."

MARK WORMAN, OWNER OF GRAVEYARD CARZ

"Warehouse security is vital to us as a brewery, and to our employees, but it is also important to TTB (Alcohol and Tobacco Tax and Trade Bureau). Having the protection of a coiling steel product completely eliminates that concern. We are really happy with the way the 1024 performs. It is very quiet and the fact that safety features like the light curtain are standard gives us peace of mind knowing that the door system is clearly designed to protect our people and equipment."

RICK DEBAR, TECHNICAL MANAGER AT OMMEGANG BREWERY

"The SteelWeave Metal Mesh Grille was the perfect solution to meet all of our needs. It complimented the design of the bar and lobby while adding some elegance. We could not be happier with the look and function of our CornellCookson SteelWeave Metal Mesh Grille and custom sliding panel."

DONALD FOX, FOX THEATERS

View Our Project Gallery for More Case Studies

Performance Upgrades

Vibration Isolator

Vibration Isolators effectively reduce the amount of vibration* caused by operation of doors and grilles.
*Vibration was reduced by14%+ on doors and grilles with vibration isolators installed compared to doors and grilles without the system
Learn More

LED Visual Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall or Between Jambs to steel or masonry. Seismic performance validation is per ASCE 7-05.

Learn More

Aesthetics

LED Visual Light Kit

Custom Slats

Slats with multiple small window size punched slots that create an open curtain design. Maintains a high level of security while allowing for ventilation and visibility.

Learn More

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

Vision Windows

Improve aesthetics and visibility with one- or two-way windows incorporated in the curtain.

Learn More

Safety and Protection Options

Sensing Edge - Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

Guide-Mounted Interlocks

An electrical cutout switch to prevent motor operation if locking device is not first disengaged.

Learn More

WeatherGard™

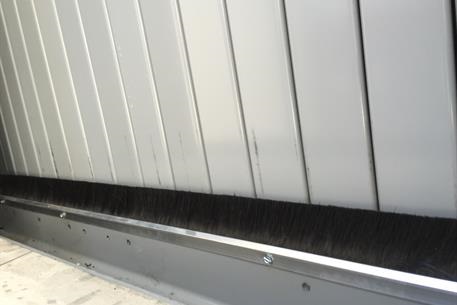

Include weather seals at the guides and bottom bar with an internal hood baffle at coil housing. Lintel mounted nylon brush seal also available.

Learn More

Unique Design Solutions

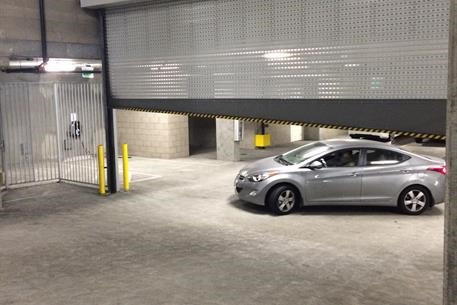

Sloping or Irregular Openings

Our special bottom bar designs can address these conditions.

Learn More

Windload Options

The Extreme 300 Series Door offers the below windload options:
- Static up to 50 PSF design windload.
- Operational up to 10 PSF maximum wind load.

SmartSync Diagnostic Tool

SmartSync Diagnostic Tool for APEX Controller

Connect the SmartSync Diagnostic Tool to the APEX controller for instant door or grille diagnostics. This tool empowers field technicians and Electrical Support Specialists to effortlessly diagnose, repair, and resolve issues with the APEX controller —streamlining your workflows and helping customers get back to business.

Specification Sheets

BIM Objects

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
High Speed Rolling Door Drawing Generator
