Roll Up Security Doors

Name: Roll Up Security Door
Brand: Cookson Door

Service Doors

Model Number: ESD10

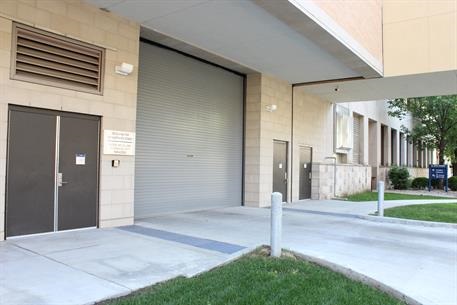

Rolling Security Door

When you need a high-security roll-up door that offers superior protection, you need a roll-up door from Cookson. Our roll-up security doors work 24/7 to defend your building against threats such as unwanted entry, burglary and destructive vandalism. We engineer our rolling doors to protect against inclement weather at both interior and exterior openings in industrial, commercial and institutional buildings.

We weren’t happy with the bulky, outdated roll-up metal security doors of the past — so we created a better, custom-made option. This high-security roll-up door withstands daily use with ease and warrantied for up to 50,000 open and close cycles — more than twice the amount of many competitive brands. This door is fully supported by side guides for maximum clearance in areas with limited overhead space, with hand-crank, push-up and motor operation available.

Customizable Security

Each overhead coiling door is custom-built to meet your specific design requirements, resulting in a door that's uniquely yours. With Cookson, you can customize different parts of your door, including:

Material: Choose a rolling door manufactured from stainless steel, galvanized steel or aluminum.
Finish: Create a unique look by customizing your finish, including clear anodized, medium or dark bronze anodized, black anodized or mill finish. We also offer SpectraShield™ powder coating, available in more than 180 different colors.
Slats: Customize your ventilation and visibility with custom slats.
Graphics: Add durable, full-color vinyl graphics to your rolling security door to display your brand logo, school mascot or business sponsors.
Windows: Let in some light and increase visibility with one-way and two-way integrated windows.
Safety features: To get even more out of your rolling security door, opt for additional safety and protection features, like locks, wind load protection and weather seals.

With Cookson, you have an entire design and support team standing by to assist. Contact us today to start building a rolling security door that meets all of your needs.

Technical Detail Information:

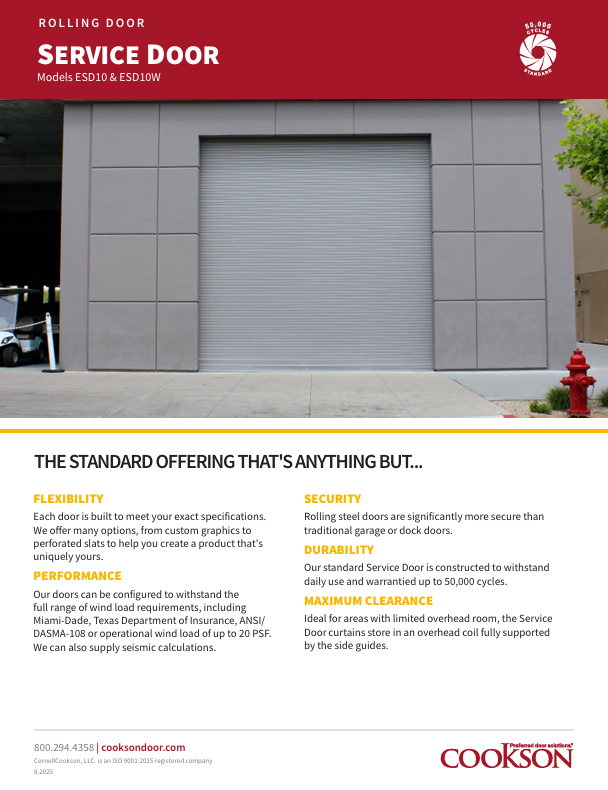

Service Door Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance

Materials/Finishes

Standard door curtains are available in:

Galvanized Steel:

Slat Gauge	GalvaNex Color
24
22
20
18

Stainless Steel:

#4 type 304 finish
Minimum 20 gauge

Aluminum:

Mill Finish, Clear anodized, Medium bronze anodized, Dark bronze anodized, Black anodized

*Finish & Gauge vary – contact us for availability or custom design requests.

Cycle Life

Daily use? Check. 20 cycles per day? Check. 50,000 lifetime cycles? Check.This door is up to the task.

If you need more or more frequent cycles, or if you want a door that’s speedier, check out our line of High Performance Doors.

Maximum Dimensions

Standard construction: 30’ wide, 30’ high
Non-standard construction: contact Architectural Design Support

Testimonials

Check Out How We've Helped These Clients With Custom Closure Solutions:

"CornellCookson had installed a rolling door for us in our old building. We used it all the time and it’s held up really well over the years. Calling them in again made perfect sense. We are thrilled with how this door looks. The level of detail that’s been captured so clearly on this large door is incredible. It’s exceeded our expectations by far and will definitely do its job as a focal point in our new building."

MARK WORMAN, OWNER OF GRAVEYARD CARZ

"Warehouse security is vital to us as a brewery, and to our employees, but it is also important to TTB (Alcohol and Tobacco Tax and Trade Bureau). Having the protection of a coiling steel product completely eliminates that concern. We are really happy with the way the 1024 performs. It is very quiet and the fact that safety features like the light curtain are standard gives us peace of mind knowing that the door system is clearly designed to protect our people and equipment."

RICK DEBAR, TECHNICAL MANAGER AT OMMEGANG BREWERY

"The SteelWeave Metal Mesh Grille was the perfect solution to meet all of our needs. It complimented the design of the bar and lobby while adding some elegance. We could not be happier with the look and function of our CornellCookson SteelWeave Metal Mesh Grille and custom sliding panel."

DONALD FOX, FOX THEATERS

View Our Project Gallery for More Case Studies

Aesthetics

Omni Powder Coat Finish

Our environmentally friendly Omni Powder Coat helps you to match your rolling steel door to select Clopay sectional doors.

Omni Powder Coat is available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

Learn More

SpectraShield™ Powder Coat Finish

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Learn More

Chain Diverter for MGH Operators

This option moves the auxiliary chain out of the clear opening and to the side of the door – enabling free movement through the door and making a chain bag unnecessary.

Learn More

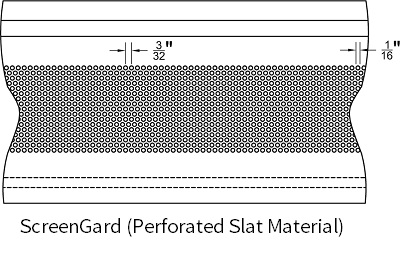

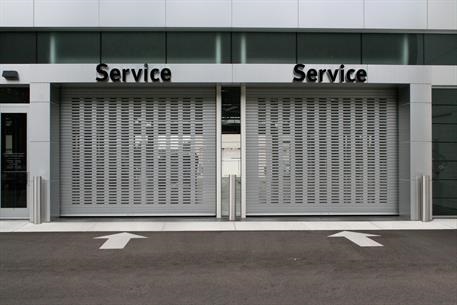

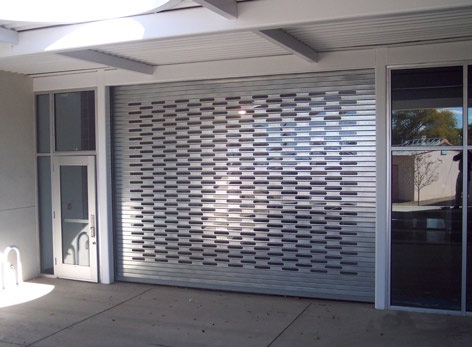

Custom Slats

Slats with multiple small window size punched slots that create an open curtain design. Maintains a high level of security while allowing for ventilation and visibility.

Learn More

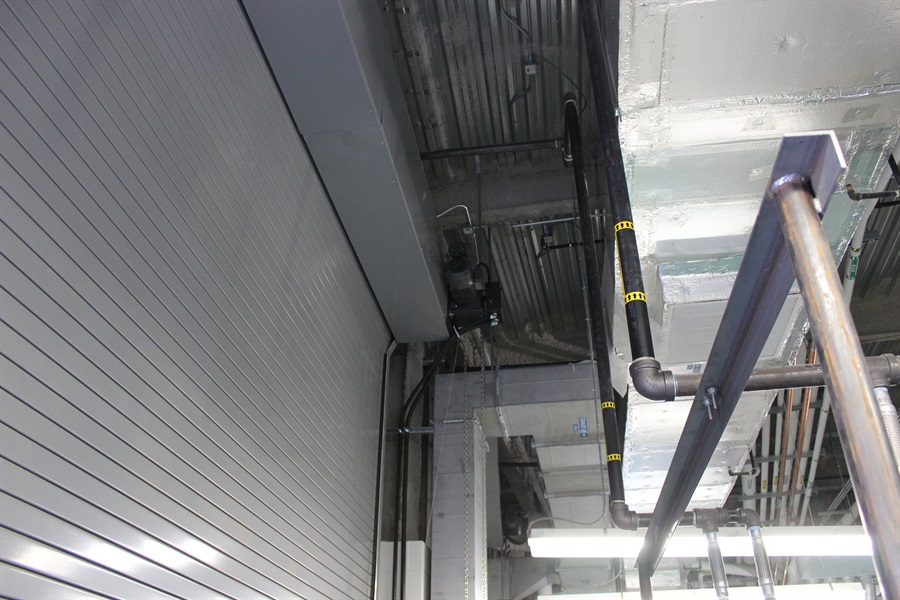

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

Vinyl Graphics

Add durable, full-color images to your curtains and hoods. Great for school logos and turning unused door space into profitable sponsorship opportunities in stadiums, amusement parks and retail stores.

Learn More

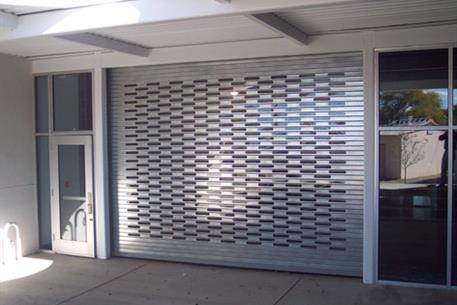

Vision Windows

Improve aesthetics and visibility with one- or two-way windows incorporated in the curtain.

Learn More

Performance Upgrades

LED Visual Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Magic Switch

A touchless activation device designed to open and close doors with the wave of a hand. It's compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.

Learn more.

High Cycle Springs

Heavy duty springs manufactured to withstand cycles of 100,000.

Learn More

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Learn More

Safety and Protection

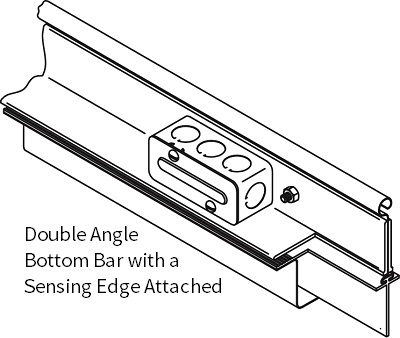

Sensing Edge - Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

SafetyGard UL325 Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Learn More

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

Guide-Mounted Interlocks

An electrical cutout switch to prevent motor operation if locking device is not first disengaged.

Learn More

Heavy Duty Bottom Bar

The HDBB is 350% stronger than traditional bottom bars, preventing forklift damage to your Service or Insulated Door. The HDBB can pay for itself after the first impact and significantly reduce future maintenance costs.

Learn More

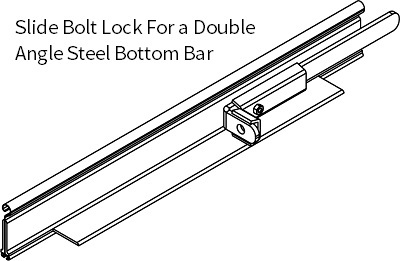

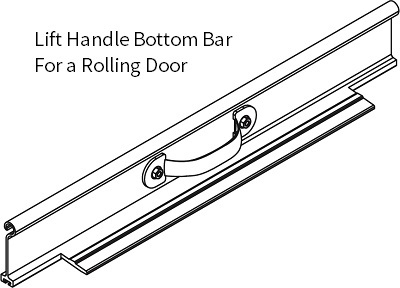

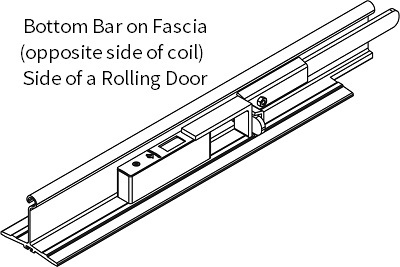

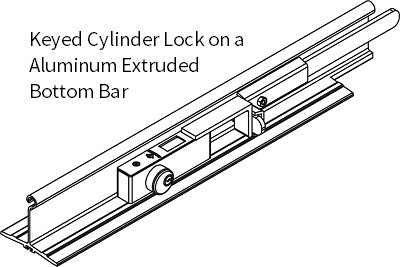

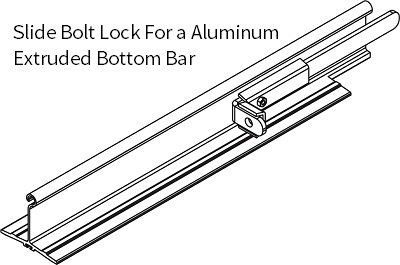

Locking

A wide variety of locking options are available to meet your security needs.

Learn More

Electronic AutoLock

The Patent Pending Electronic AutoLock increases the overall security and strength of the Extreme High Performance Grille.

Learn More

Quick Repair Door

Quick Repair Doors doors are provided with 3' or 6' of extra curtain, an impactable bottom bar and removable lower guide sections. These features allow for faster repair of slat damage, reducing downtime and maximizing the lifetime value of your door.

Learn More

Rolling Door Protector (RDP)

The RDP eliminates costly fork truck damage to coiling doors by creating a physical barrier at the top of the door that absorbs impacts.

Learn More

Weather Seal

Include weather seals at the guides and bottom bar with an internal hood baffle at coil housing. Lintel mounted nylon brush seal also available.

Learn More

Static Wind Load

Can be configured to withstand the full range of specific wind load requirements including missile impact ratings.

Learn More

Operational Wind Load

Can be configured to withstand an operational wind load of 20 PSF.

Learn More

Unique Design Solutions

Pass Doors

Hollow metal man door and hinged frame available within a curtain.

Learn More

Sloping or Irregular Openings

Our special bottom bar designs can address these conditions.

Learn More

Superimposed Doors

Combine two different curtains on the same opening. Typically, an insulated door is used in conjunction with an open design rolling grille to provide ventilation. When extreme weather or sound resistance is desired, we can provide superimposed/double insulated curtain assemblies.

Learn More

Combination Doors

Combine two different slat profiles in the same curtain. Typically, a standard slat is combined with a perforated slat or even rolling grille for ventilation and security.

Learn More

Mullions

There are multiple mullion options - corner, fixed and removable.

Learn More

Finishes Colors & Options

Finishes Colors and Options

Finishes Colors & Options Sheet
AtmoShield® Color Options
Powder Coat RAL Color Chart

Vibration Isolators

Vibration Isolator

Vibration Isolators effectively reduce the amount of vibration* caused by operation of doors and grilles.
*Vibration was reduced by14%+ on doors and grilles with vibration isolators installed compared to doors and grilles without the system
Learn More

SmartSync Wireless Safety Edge Kit

SmartSync™ Wireless Safety Edge Kit & Wireless Remote Control

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.

The Smartsync™ Wireless Remote allows wireless control of your door or grille. This heavy-duty remote comes equipped with an anti-shock design and is compatible with most motor-operated doors, grilles or counter doors.*
*Not compatible with NEMA 7/9 operators
Learn more.

Specification Sheets

Roll Up Door Specification

BIM Objects

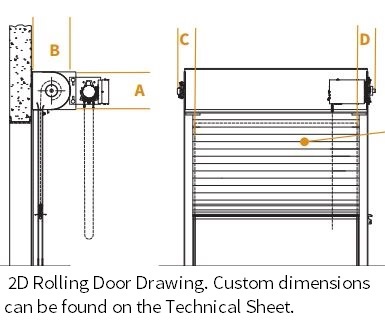

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
