Wind-Master® Service and Insulated Rolling Doors

Maximum Protection

Model Number: ESD10W & ESD20W

Operational Wind Load Rolling Door

When a standard rolling door is exposed to high winds, the curtain will deflect and push against the guides eliminating the function to operate. Our Wind-Master doors are designed with roller end lock / wind locks, which allow the door to seamlessly glide through the guides when exposed to a wind load of 20 PSF. The spring less design also eliminates any resistance that would be created by the springs, allowing the full weight of the door to assist in operation. The Wind-Master door also offers an impressive static wind load, when the door is in the closed position - the maximum PSF will vary based on the curtain size.

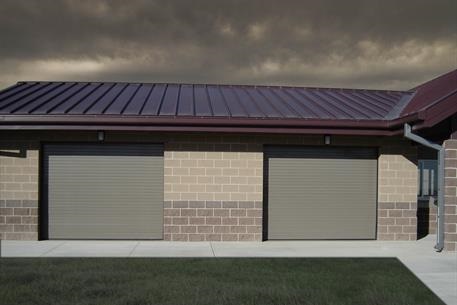

The Wind-Master operational wind loaded door is available in a service and insulated model. Both models offer flexible design, top of the line security, reliability and durability. If you are looking to improve climate control or reduce sound transmission, the insulated model would be ideal for your application.

Technical Detail Information:
Wind-Master Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance

Static Wind Load

Sizes

The minimum size of a Wind-Master Service or Insulated door is 6'4" wide x 6'4" high.

The maximum size of a Wind-Master door is:

Service Door

20'5" wide x 20' high (Steel)
20'5" wide x 16' high (Stainless Steel)

Insulated Door

20'5" wide x 20'4" high (Steel)
20'5" wide x 20'4" high (Stainless Steel)

Operator

The Wind-Master Operational Wind Load Door must be motor operated.

It features a super duty SG operator with full logic. It can be used on larger doors or doors which may periodically cycle more than 20 times per day

Safety and Protection

Sensing Edge - Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

SafetyGard UL325 Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Learn More

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

Aesthetics

AtmoShield™ Powder Coating

Textured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.

Learn More

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

SpectraShield™ Powder Coat Finish

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Learn More

Vinyl Graphics

Add durable, full-color images to your curtains and hoods. Great for school logos and turning unused door space into profitable sponsorship opportunities in stadiums, amusement parks and retail stores.

Learn More

Vision Windows

Improve aesthetics and visibility with one- or two-way windows incorporated in the curtain.

Learn More

Finishes Colors & Options

Finishes Colors and Options

Finishes Colors & Options Sheet
AtmoShield® Color Options
Powder Coat RAL Color Chart

Performance Upgrades

LED Visual Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Magic Switch

A touchless activation device designed to open and close doors with the wave of a hand. It's compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.

Learn more.

SmartSync Wireless Safety Edge Kit

SmartSync™ Wireless Safety Edge Kit & Wireless Remote Control

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.

The Smartsync™ Wireless Remote allows wireless control of your door or grille. This heavy-duty remote comes equipped with an anti-shock design and is compatible with most motor-operated doors, grilles or counter doors.*
*Not compatible with NEMA 7/9 operators
Learn more.

Specification Sheets

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
