Thermiser Max® - Low U | Insulated Rolling Door

Insulated Doors

Model Number: ESD40

Tried and tested Performance.

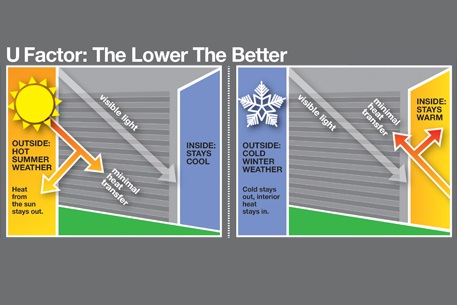

The Thermiser Max® - Low U Door sets the standard for energy efficiency and climate control with the lowest U-factor rating among steel rolling doors.

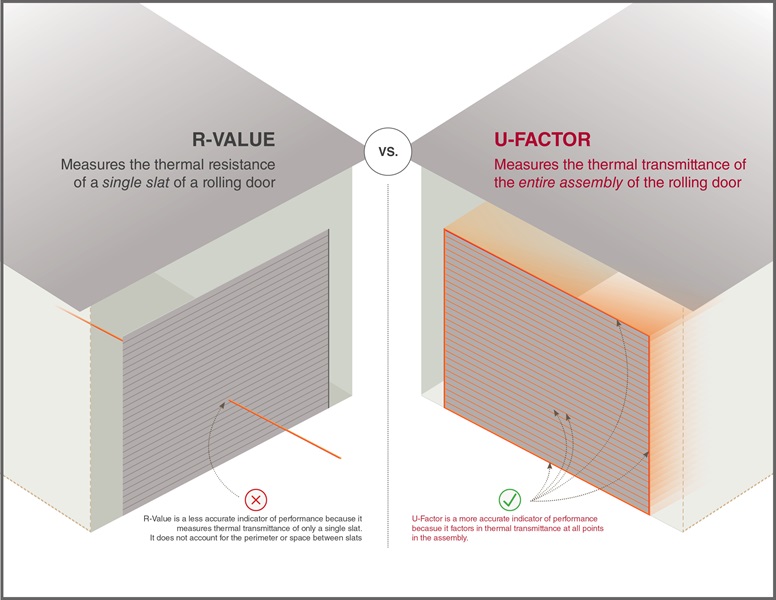

Made with mineral wool insulation and a CPVC backer, the Thermiser Max - Low U Door stands out with one of the lowest U-factor ratings among most insulated doors. Through rigorous third-party testing, our door carries an impressive U-factor rating of 0.532 for the entire assembly—a rating that stands as the industry's most precise measurement of thermal performance.

Regulate temperature and sound.

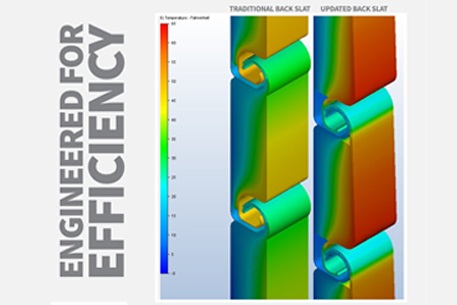

Engineered for climate and sound control, the Thermiser Max - Low U Door is constructed with an insulated curtain, patented perimeter seal and thermally-broken guide. These elements work together to minimize the speed of heat transferred through the door assembly and noise mitigation.

Our Thermiser Max – Low U Door carries a Sound Transmission Rating (STC)* of 27 for the full assembly when configured with 18GA steel front slats, giving you more control over interior and exterior noise levels. Doors meet ASHRAE® 90.12, IECC® 2021 and California's Title 24 air infiltration requirements with an independently tested value of less than 0.3 CFM/ft2. Additionally, our doors can be configured to meet a maximum operational wind load of 20 PSF.

*Options such as windows, pass doors, etc. may impact U-factor. Contact the factory for details on specific configurations.

**Contact the factory for details. All configurations are evaluated per ASTM E90, based on testing a complete operable assembly.

Dare to compare. Add up your savings!

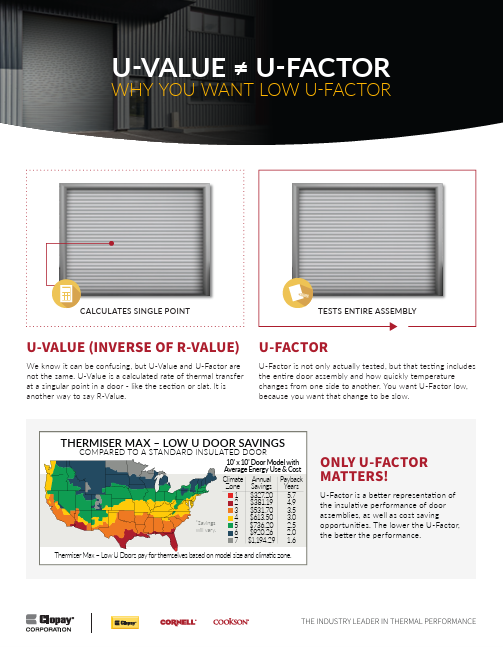

Carrying the lowest tested U-factor among insulated rolling steel doors in the market, Thermiser Max – Low U door is engineered to reduce energy loss and electricity usage — shrinking your utility costs.

Calculate your savings and discover how the Thermiser Max door stacks up against other products.

Technical Detail Information:

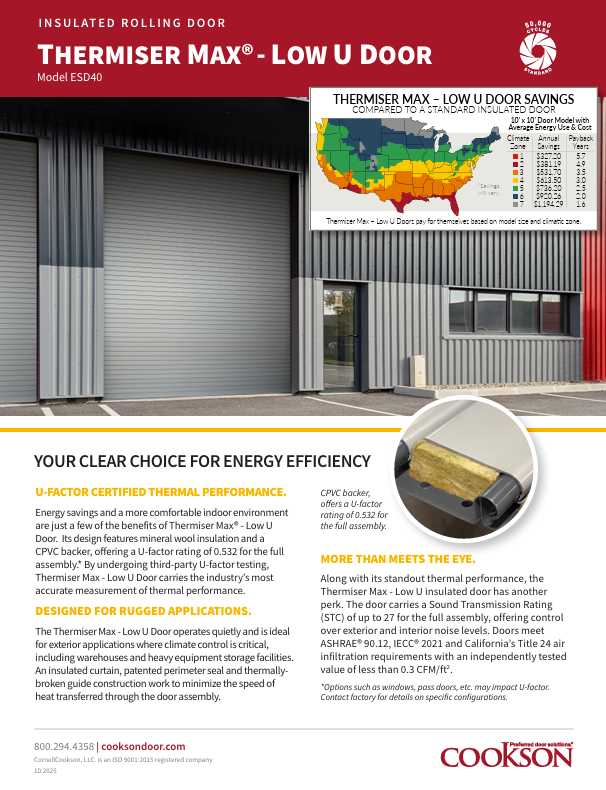

Thermiser Max - Low U Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance

Usage

These doors are constructed for daily use and can withstand operation of up to 20 cycles per day – that’s 50,000 cycles for the lifetime of the door.

If your requirements call for more than 20 cycles per day, high cycle construction is available.

Visit our line of High Performance Doors

Materials & Finishes

Slats available in:

Galvanized Steel

Exterior Slat Gauge

GalvaNex Color

Gray, Tan, White, Brown

Gray, Tan

Gray, Tan, White, Brown

Gray, Tan, White

Stainless Steel

Exterior Slat Gauge	Finish
22	#4

Finish/gauge availability varies. Contact us for detailed finish/gauge availability or special requests.

Available Operators

Our doors can open by motor, chain, hand-crank, or push-up operation, depending on size, weight and/or frequency of operation.

Model MG – A medium duty operator for doors that will cycle less than 20 times per day

Model SG – A super duty, full logic operator for larger doors or doors that may periodically cycle more than 20 times per day

Learn more about our operators here.

Aesthetics

Omni Powder Coat Finish

Our environmentally friendly Omni Powder Coat helps you to match your rolling steel door to select Clopay sectional doors.

Omni Powder Coat is available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

Learn More

AtmoShield™ Powder Coating

Textured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.

Learn More

Chain Diverter for MGH Operators

This option moves the auxiliary chain out of the clear opening and to the side of the door – enabling free movement through the door and making a chain bag unnecessary.

Learn More

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

SpectraShield™ Powder Coating

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Learn More

Trim Package

In applications where exterior aesthetics are important, such as hotels, condominiums, convention centers and parking garages, the addition of a trim package can cover unsightly hardware and contribute to the building's architecture.

Learn More

Vinyl Graphics

Add durable, full-color images to your curtains and hoods. Great for school logos and turning unused door space into profitable sponsorship opportunities in stadiums, amusement parks and retail stores.

Learn More

Vision Windows

Improve aesthetics and visibility with one- or two-way windows incorporated in the curtain.

Learn More

Finishes Colors & Options

Finishes Colors and Options

Finishes Colors & Options Sheet
AtmoShield® Color Options
Powder Coat RAL Color Chart

Safety and Protection

Sensing Edge - Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

SafetyGard UL325 Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Learn More

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

Guide-Mounted Interlocks

An electrical cutout switch to prevent motor operation if locking device is not first disengaged.

Learn More

HDBB (Heavy Duty Bottom Bar)

The HDBB is 350% stronger than traditional bottom bars, preventing forklift damage to your Service or Insulated Door. The HDBB can pay for itself after the first impact and significantly reduce future maintenance costs.

Learn More

Motor Mounted Interlock

An overload sensing device that prevents damage if motor operation is attempted when the door or grille is locked. Field wired guide mounted interlocks are no longer necessary.

Learn More

RapidResponse

RapidResponse doors are provided with 3' or 6' of extra curtain, an impactable bottom bar and removable lower guide sections. These features allow for faster repair of slat damage, reducing downtime and maximizing the lifetime value of your door.

Learn More

RapidResponse Options Page

Rolling Door Protector (RDP)

The RDP eliminates costly fork truck damage to coiling doors by creating a physical barrier at the top of the door that absorbs impacts.

Learn More

Wind Load

Can be configured to withstand the full range of specific wind load requirements including missile impact ratings.

Learn More

Performance Upgrades

LED Visual Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

High Cycle Springs

Heavy duty springs manufactured to withstand cycles of 100,000.

Learn More

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall or Between Jambs to steel or masonry. Seismic performance validation is per ASCE 7-05.

Learn More

Unique Design Solutions

Sloping or Irregular Openings

Our special bottom bar designs can address these conditions.

Learn More

Superimposed Doors

Combine two different curtains on the same opening. Typically, an insulated door is used in conjunction with an open design rolling grille to provide ventilation. When extreme weather or sound resistance is desired, we can provide superimposed/double insulated curtain assemblies.

Learn More

SmartSync Wireless Safety Edge Kit

SmartSync™ Wireless Safety Edge Kit & Wireless Remote Control

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.

The Smartsync™ Wireless Remote allows wireless control of your door or grille. This heavy-duty remote comes equipped with an anti-shock design and is compatible with most motor-operated doors, grilles or counter doors.*
*Not compatible with NEMA 7/9 operators
Learn more.
